1KW 12V Hybrid Solar Inverter 1.5KW 24V off Grid Pure Sine Wave Inverter with MPPT 80A Solar Charge Controller for Battery

1KW 12V Inverter

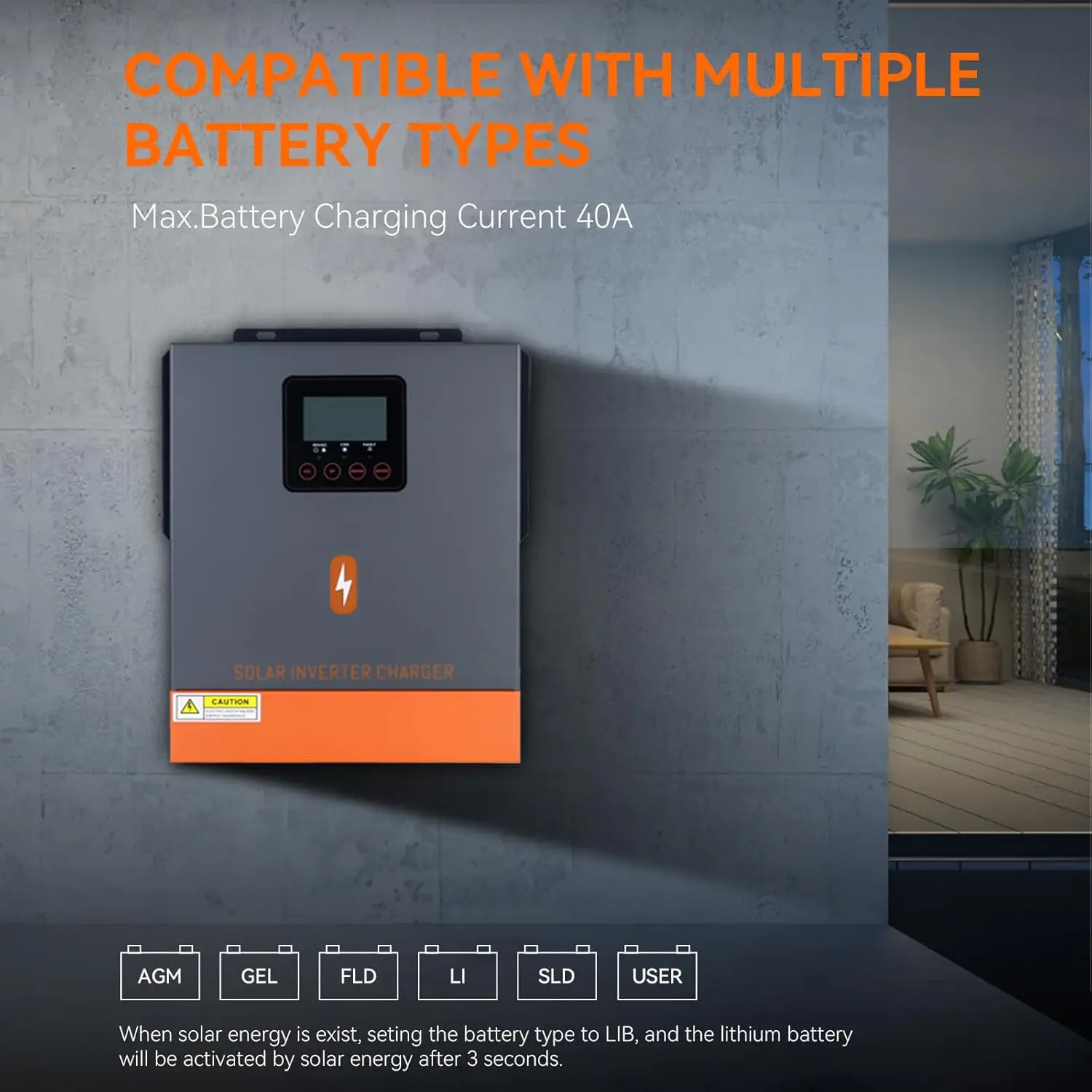

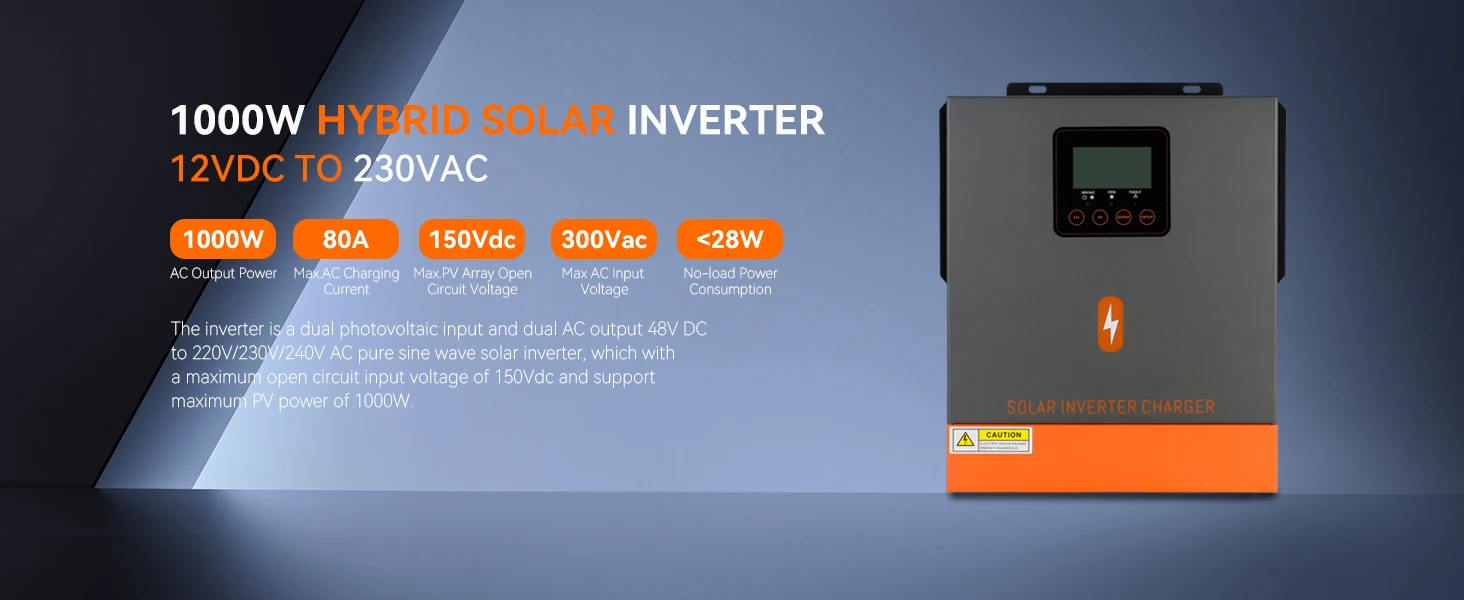

【Pure Sine Wave Inverter】 1000W Pure Sine Wave inverter 12V DC 220/230/240V (Single Phase/A Hot Leg 230V Output, Can't Output 110V AC), installed in 40A mppt loading controller, is a new all-in-one hybrid-solar inverter charging device, suitable for 12V lead acid (Seal, AGM, gel, flooded) and lithium battery.

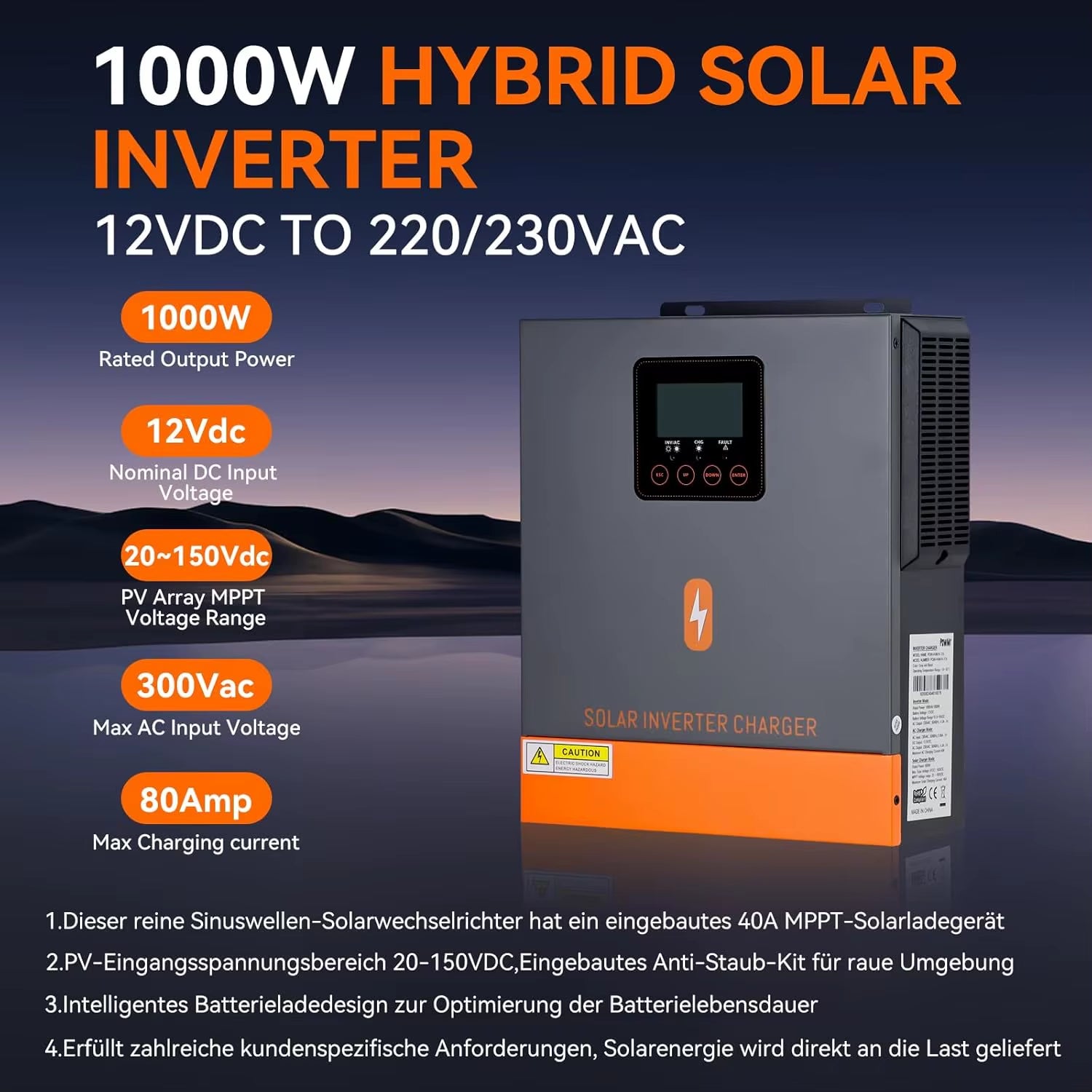

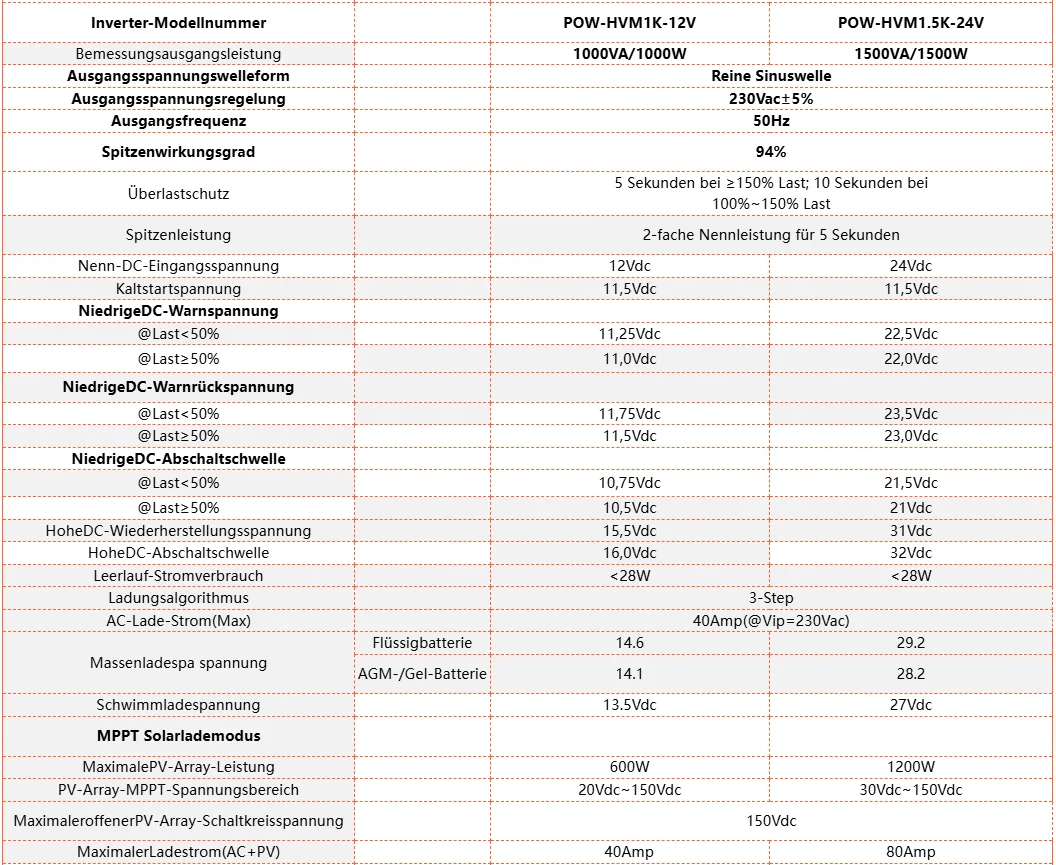

【Technical data】 1kW hybrid solar inverter max.pv input power: 600W, voltage range: 20-150VDC, max. PV input voc: 150V DC, start voltage> 30V; Recommended PV cable size: 12AWG, Max.ladeststrom: 40A. Nominal input frequency: 50/60Hz; Output power: 1000W.

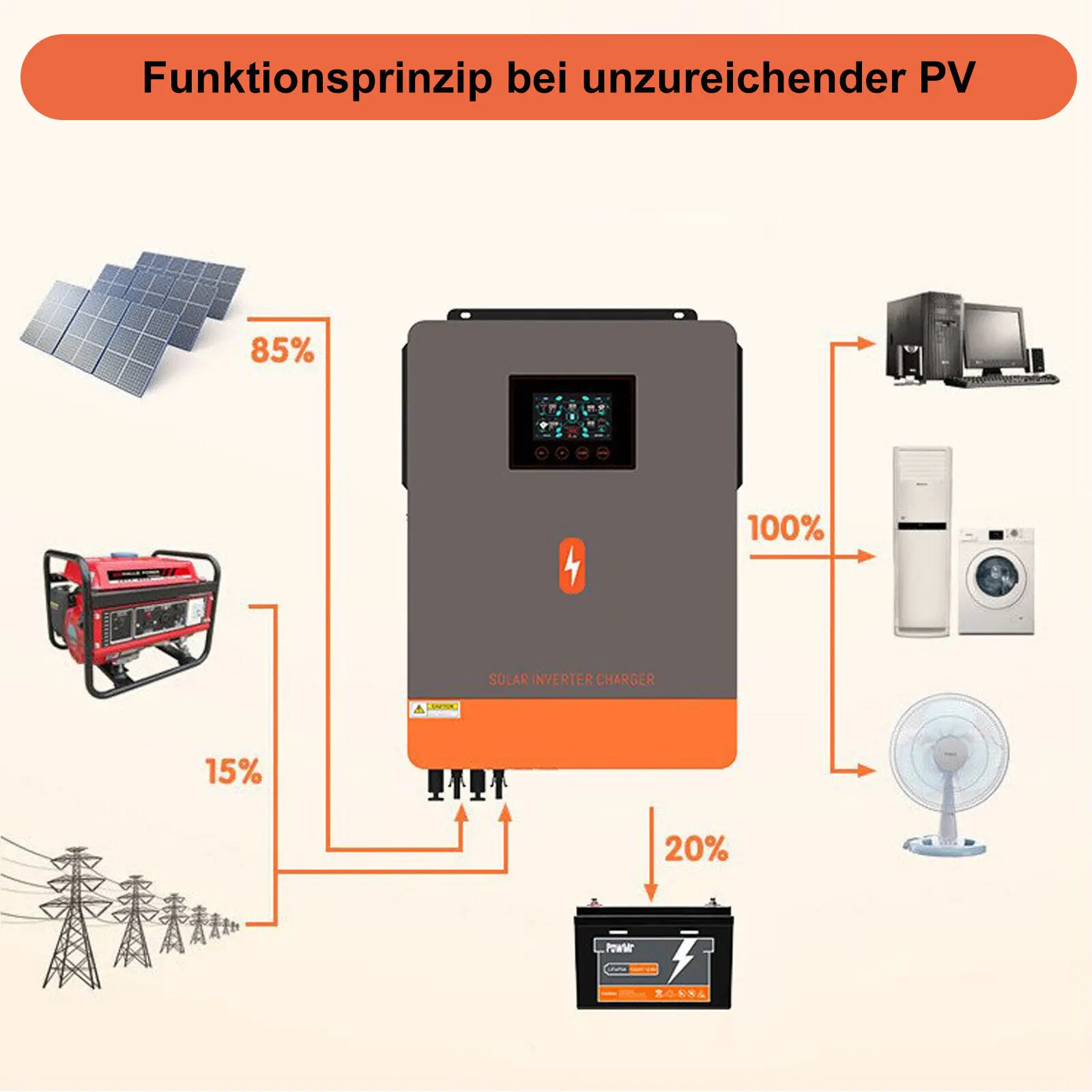

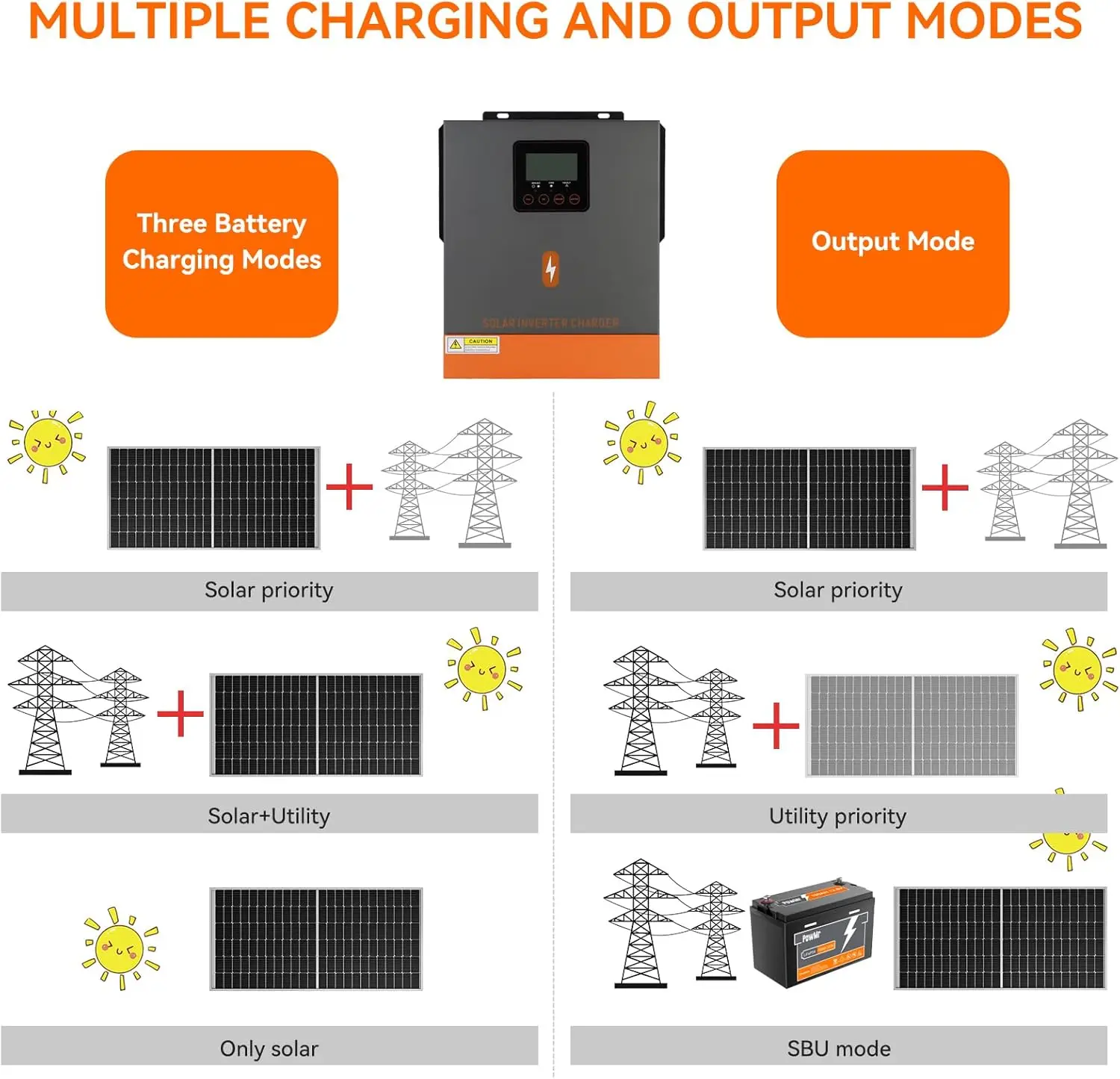

【Several loadingodi】 Off grid solar inverter have 4 LADENODI are optional, i.e. only solar, Main deadline, solar period and Main & Solar hybrid load; and 2 output modes are available, i.e. solar period and SBU priority, uninterrupted power supply to meet different application requirements. And compatible with the network voltage or generator output, auto restart, while AC is restored.

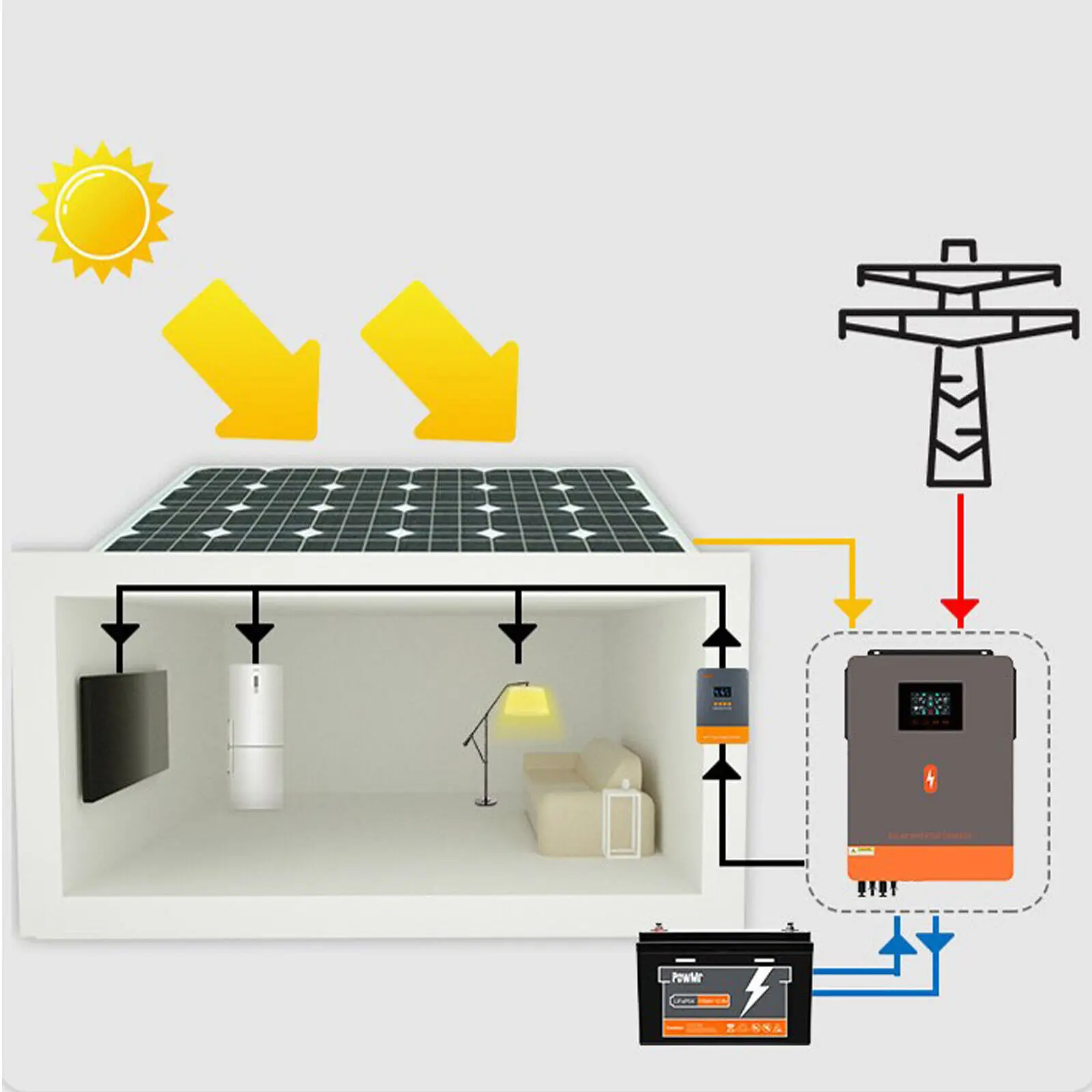

【Further application area】 MPPT inverter charger pure sinus wave 1000W for RV Camping Boot Haus Emergency ect. Can be accessed to a variety of household and office loads, including oven, rice cooker, lamps, televisions, fans and other AC loads. （Make sure that it is not installed near the bedroom, the fan will make a noise if the inverter runs.

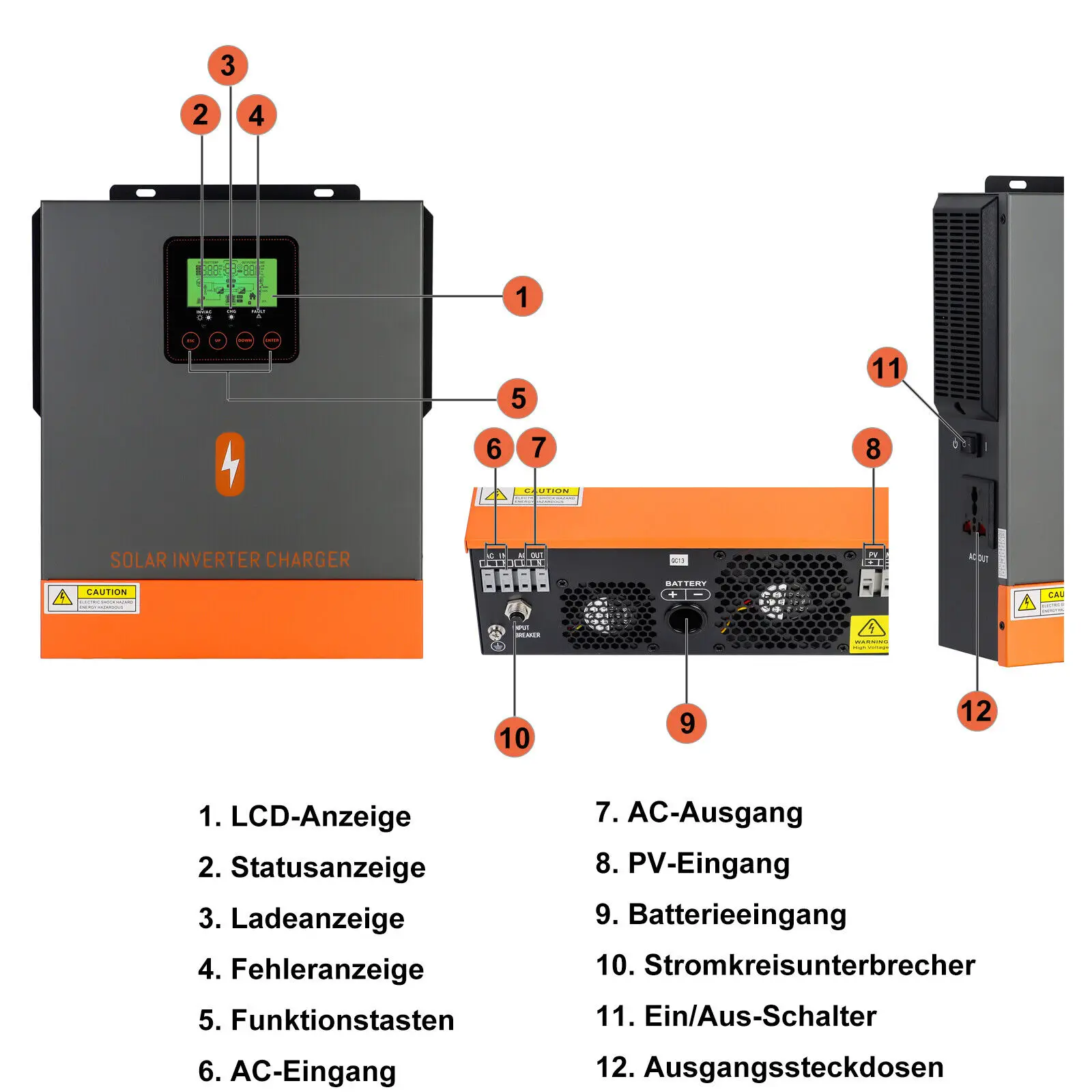

【LCD & LED display】 LCD display design and 3 LED indicators for dynamic display of system data and operating status, configurable battery charging current, AC/solar loading priority and load supply priority via LCD setting.

unction

• Icents Reiner Sinus inverter

• Configurable input voltage area for household appliances and personal computers via LCD setting

• Configurable battery charging current depending on the application via the LCD setting

• Configurable AC/solar charger priority via LCD setting

• Compatible with mains voltage or generator current

• Automatic restart during AC recovery

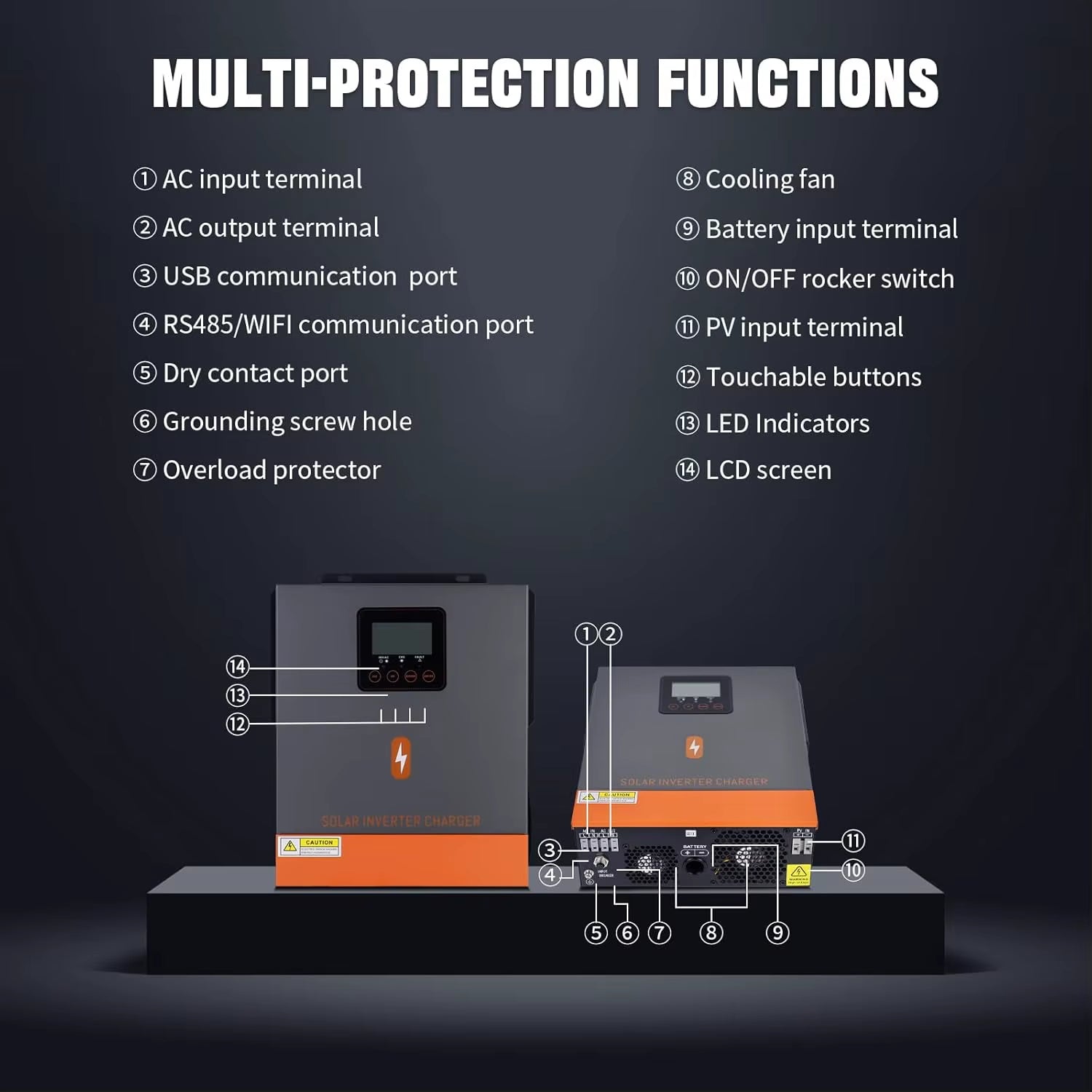

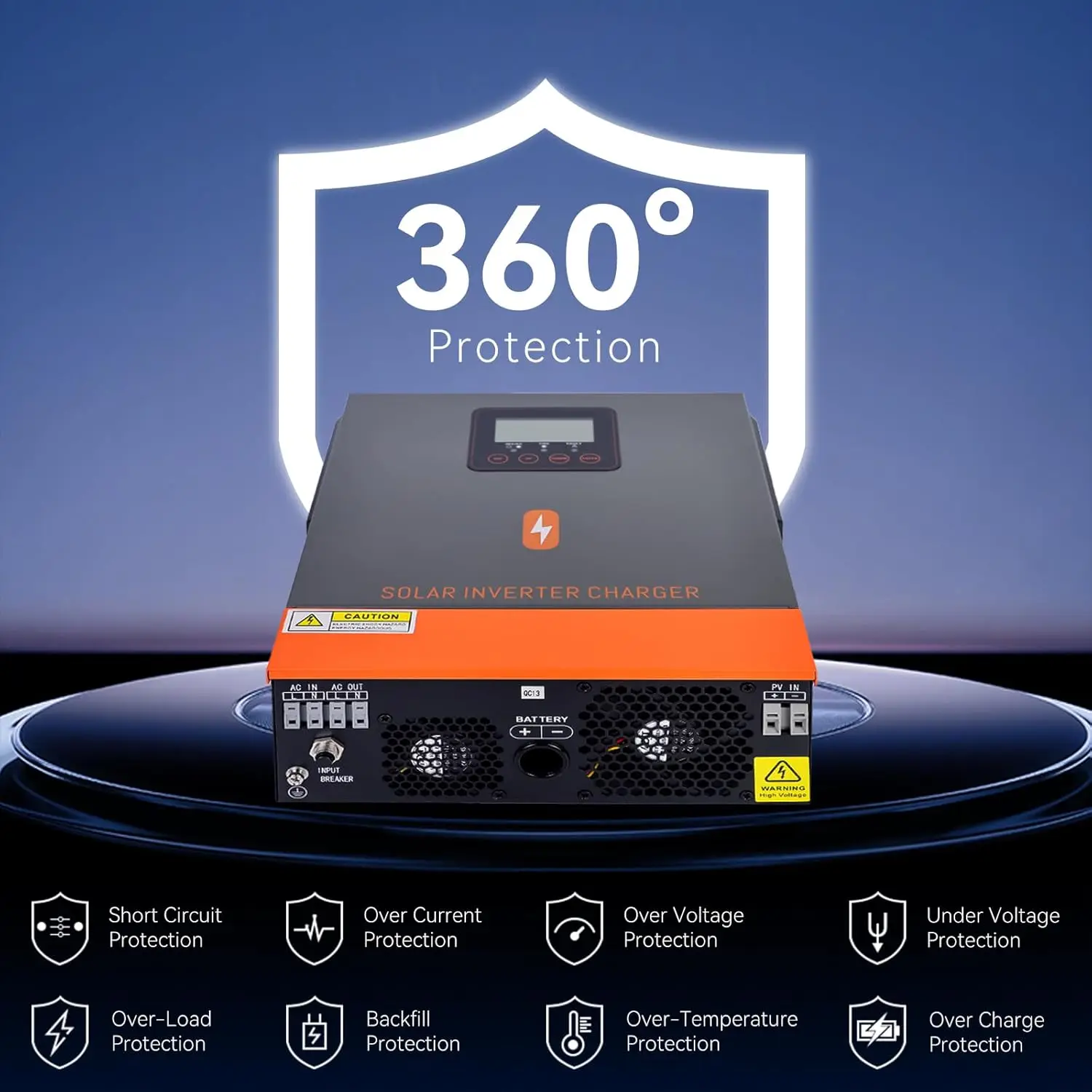

• overload/ over temperature/ short circuit protection

• Intelligent battery charger design for optimized battery power

• Cold start function
